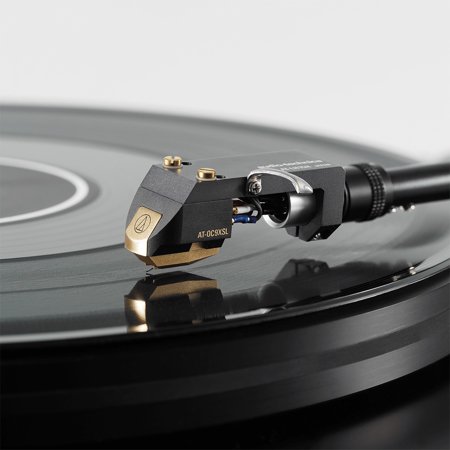

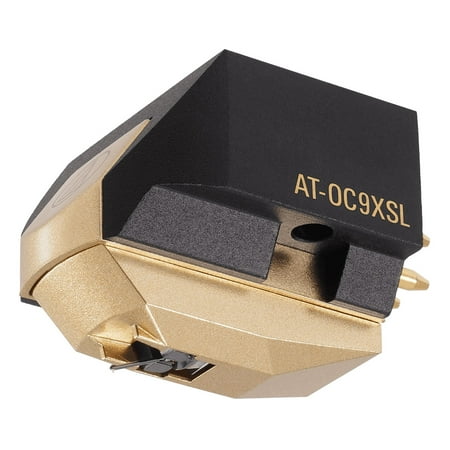

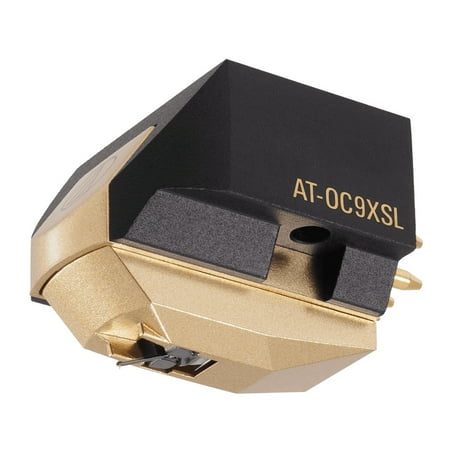

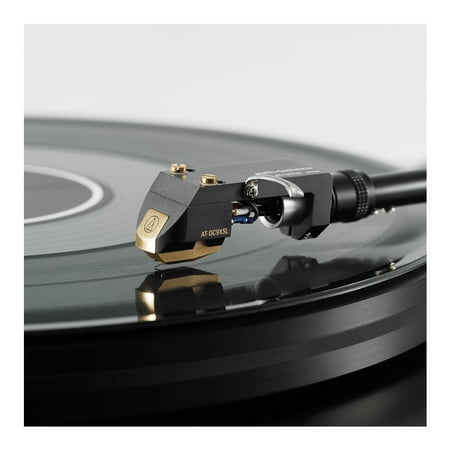

Audio Technica ATOC9XSL Dual Moving Coil Cartridge

The AT-OC9XSL Dual Moving Coil cartridge with special line contact stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that dramatically increase the magnetic energy, and the nude special line contact stylus on a boron cantilever that tracks the record groove with ultimate accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.Features:-Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation-The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion-The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required-Features nude Special Line Contact stylus and boron cantilever with accurate tracking ability and high transient response-A neodymium magnet and permendur yoke provide dramatically increased magnetic energy-Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction-Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transferSpecifications- Type: Dual Moving Coil- Body Material: Aluminum- Frequency Response: 20-50,000 Hz- Channel Separation: 28 dB (1 kHz)- Vertical Tracking Angle: 20°- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)- Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)- Coil Impedance: 12 ohms (1 kHz)- DC Resistance: 12 ohms- Coil Inductance: 25 mH (1 kHz)- Output: 0.4 mV (at 1 kHz, 5 cm/sec)- Channel Balance: 0.5 dB (1 kHz)- Stylus Shape: Special Line Contact- Stylus Type: Nude rectangular shank- Stylus Curvature Radius: 1.5 x 0.28 mil- Cantilever: 0.28 mm diameter nude boron- Static Compliance: 22 x 10-6 cm/dyne- Dynamic Compliance: 18 x 10-6 cm/dyne (100 Hz)- Wire Used for Coil: PCOCC- Terminal Pins: Brass- Mount: Half-inch- Weight: 7.6 g (0.3 oz)- Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D- Accessories Included: Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush- Mounting Feature: Threaded body- Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
