Audio-Technica - Audio Technica VM510CB Conical Bonded Stereo Cartridge - Blue

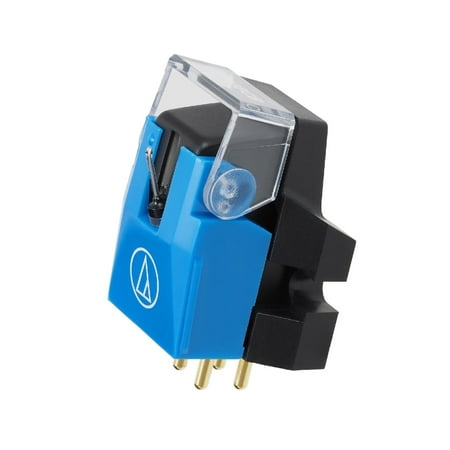

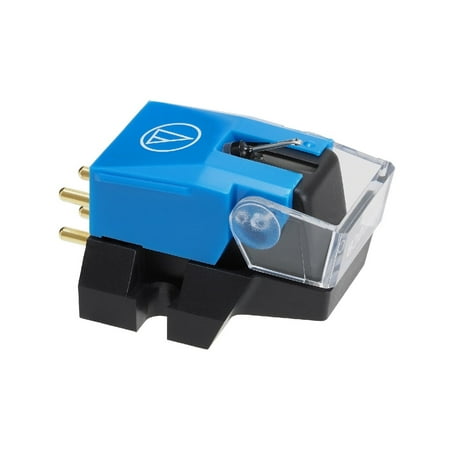

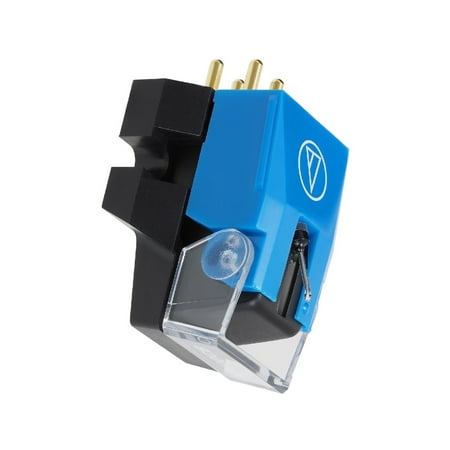

Audio Technica VM510CB Conical Bonded Stereo Cartridge

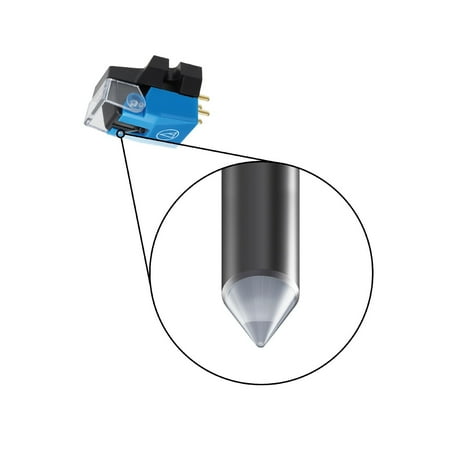

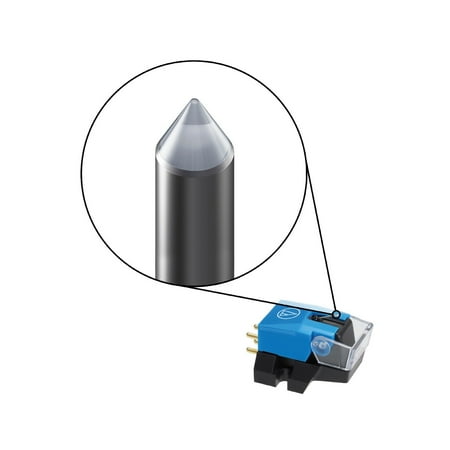

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.Features:-VM dual magnet cartridge with 0.6 mil conical stylus-Aluminum cantilever-Paratoroidal coils improve generating efficiency-Center shield plate between the left and right channels reduces crosstalk-Durable low-resonance polymer housingSpecifications- Frequency Response: 20-20,000 Hz- Channel Separation: 25 dB (1 kHz)- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)- Stylus Construction: Bonded round shank- Recommended Load Impedance: 47,000 ohms- Output: 5.0 mV (at 1 kHz, 5 cm/sec)- Channel Balance: 1.5 dB (1 kHz)- Stylus Shape: 0.6 mil conical- Cantilever: Aluminum pipe- Mount: Half-inch- Replacement Stylus: VMN10CB- Coil Impedance: 2,700 ohms (1 kHz) - DC Resistance: 800 ohms - Load Capacitance: 100-200 pF - Coil Inductance: 460 mH (1 kHz) - Static Compliance: 35 x 10-6 cm/dyne - Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz) - Vertical Tracking Angle: 23° - Dimensions (H x W x D): 17.3 x 17.0 x 28.2 mm / 0.7 x 0.7 x 1.1" - Weight: 6.4 g (0.2 oz) - Accessories Included: Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts
