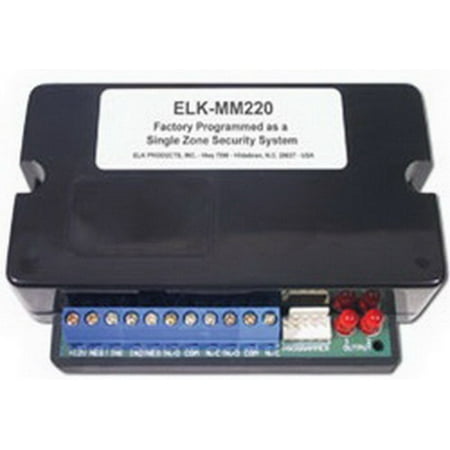

Elk Products Controller; 2 Input, 2 Output, Programmable, ELK-MM220

Elk Products Controller; 2 Input, 2 Output, Programmable, ELK-MM220

Manufacturer part number: ELK-MM220 The Magic Module (ELK-MM220) is a two digital input, two form C relay output programmable controller. It may be used as a stand alone field programmable controller in a vast array of applications from timers, single zone security system, pulse stretcher, simple process controllers, etc.The MM220 comes factory pre-programmed as a single zone security system and can be re-programmed by using a personal computer. The MM220 program is stored into re-programmable Electrically Erasable Programmable Read Only Memory (EEProm memory). The ELK-MB485 Data Bus Interface for Magic Module? Series and the ELK-MM443 Magic Module? Programmable Controller, 4 input, 4 output, iButton? and X10? interface are required to program the ELK-MM220.Also available.. ELK-MM443, a 4 analog/digital input, 4 relay output programmable controller. Features Two Digital Inputs Two Relay Outputs (jumper programmable "transistor open collector" output on relay 2) 4096 program bytes using SIMPLE programming language 4 general purpose Counters, range 0 to 255 counts 4 general purpose Timers, range 1/10 second to over 255 hours Program stored in non-volatile EEProm memory Surface Mount ABS Enclosure with Snap-On Cover Lifetime Limited Warranty Specifications: Inputs: 2 Digital inputs, Jumper programmable for +12v or pull to ground input level. 0 to 2 volts is low, 2 to 15 is Hi. Outputs: 2 Form "C" Relays, 10 Amps @ 120VAC or 7 Amps @ 28VDC; One relay output may be configured as open collector transistor output - 100 ma. Max. Operating Voltage: 9.5-15 Volts DC Current Draw: 10 ma. Nominal, 70 ma. Maximum with both relays active. Enclosure: Black ABS Plastic: 4.5" x 3" x 1.2" These are just a few applications the MM220 can be programmed for: Single Zone Security System Restricted Area Door Annunciator Boat Alarm Cross Zoning PIR Anding Garage Door Controller SPECIALTY Timer (Most Common application) Latching Relay Flip Flop Relay HVAC Control Lighting Control Gate Controller Man Trap (2 Doors) Occupancy Alert Device NOTE: PO box deliveries are not available. The item can't be shipped to AF, AA, AC, AE, AM, AP in the Unite States.
